The whole alloy aluminum plate CNC precision carving process + high precision laser sheet metal cutting technology

Anodized fine surface treatment + drawing process

German imported professional mechanical keys

Custom style button cap, multi-layer compound spray oil technology, super anti-wear, anti-leakage

American optical encoder, smooth handle, high - precision positioning

CNC high precision CNC machining, anodic oxidation technology, alloy aluminum encoder cap

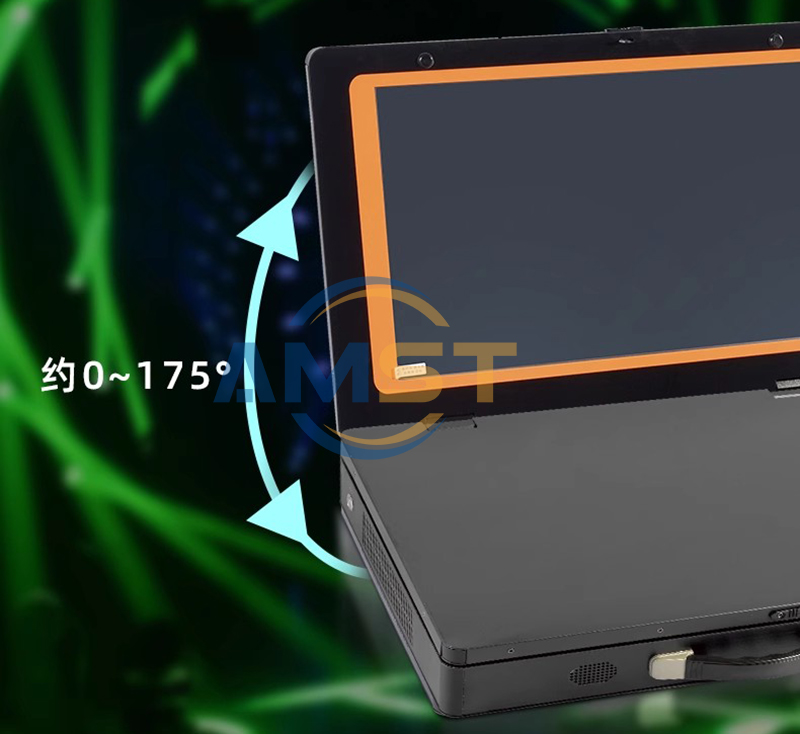

Custom damper, screen Angle adjustment support structure

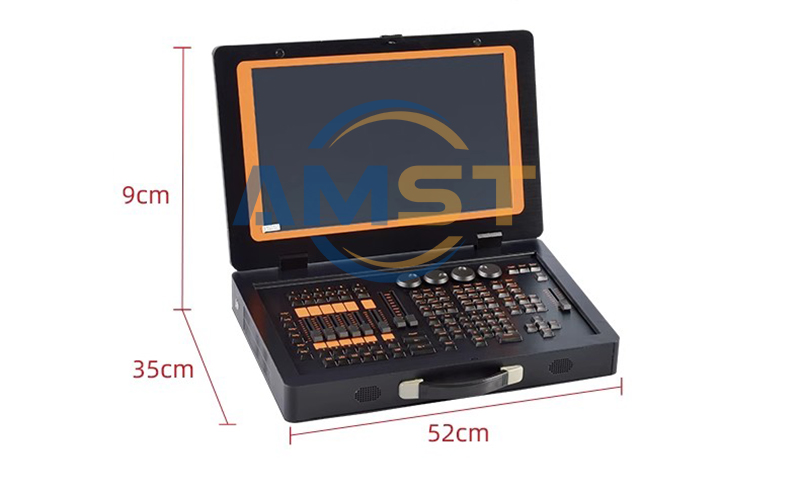

Lightweight small size design, easy to carry

Core parts PCB full board sinking technology

Industrial grade accessories, strict selection, ensure maximum stability guarantee

Electrical parameters:

Motherboard:Gigabyte，independent i3/i5/i7CPU

120GB Kingston SSD, 4GB Kingston RAM

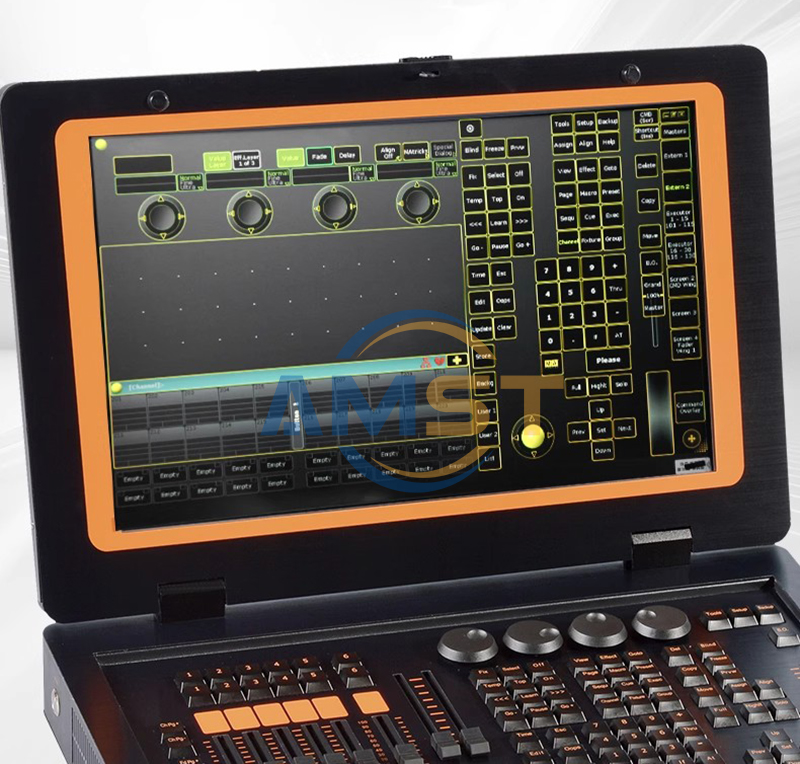

HDMI hd display protocol 17.3 inch high resolution1920*1080 LCD screen

Taiwan capacitor touch screen and touch driver

Control Settings:

4 attribute coding wheel (integrated key function), 1 main push-rod (60mm manual)

2 AB faders (100mm manual) and 6 program playback faders (60mm manual)

12 program storage function keys, 6 execution keys, 6 page keys

Full specification command key area

Interface:

4 USB interfaces (type A)

1 backup USB input interface (type B)

1 MIC audio input interface, 1 stereo output interface

1 LTC input interface

2 DMX-512 output interface, 1 DMX-512 input interface (composite output function)

1 gigabit network interface, 1 MIDI input interface, 1 MIDI output interface
