Electrical parameters:

Motherboard:Gigabyte，independent i3/i5/i7CPU

120GB Kingston SSD, 4GB Kingston RAM

HDMI hd display protocol 17.3 inch high resolution1920*1080 LCD screen

Taiwan capacitor touch screen and touch driver

Control Settings:

4 attribute coding wheel (integrated key function), 1 main push-rod (60mm manual)

2 AB faders (100mm manual) and 6 program playback faders (60mm manual)

12 program storage function keys, 6 execution keys, 6 page keys

Full specification command key area

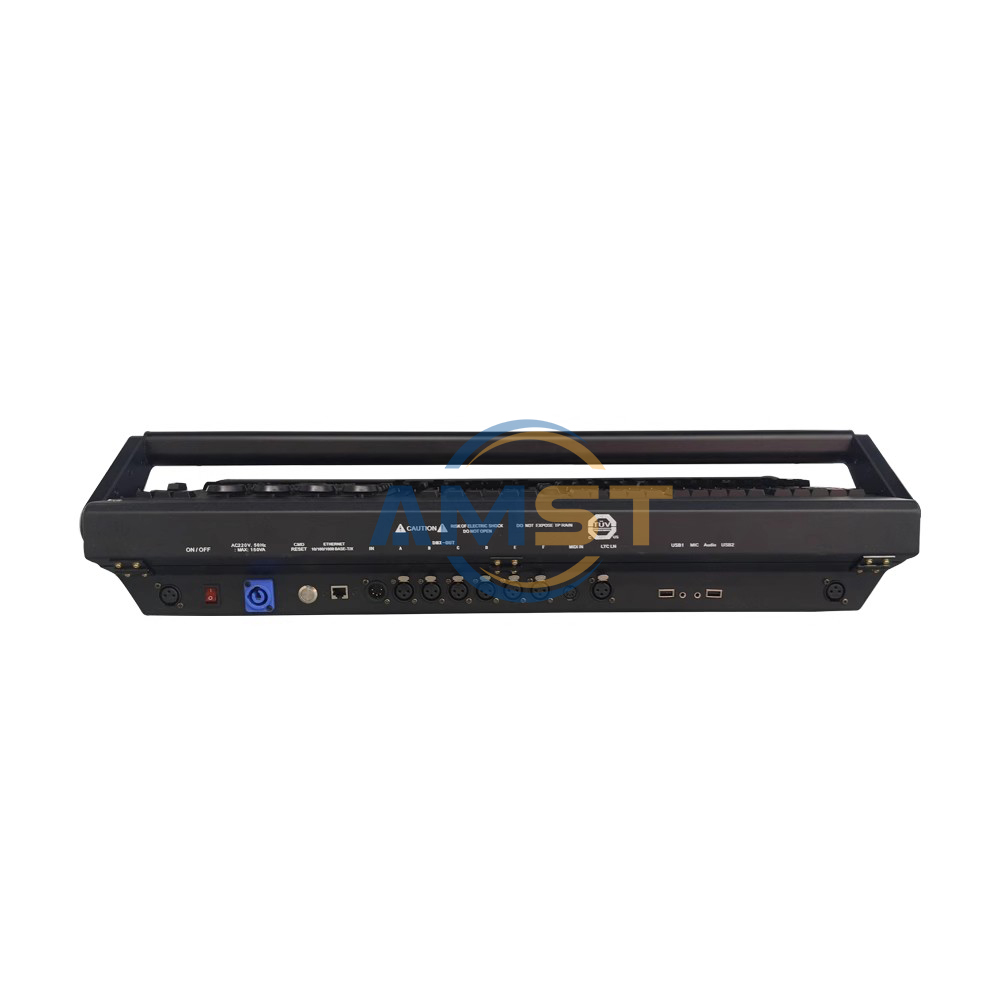

Interface:

4 USB interfaces (type A)

1 backup USB input interface (type B)

1 MIC audio input interface, 1 stereo output interface

1 LTC input interface

2 DMX-512 output interface, 1 DMX-512 input interface (composite output function)

1 gigabit network interface, 1 MIDI input interface, 1 MIDI output interface
